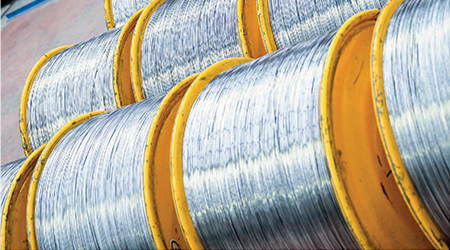

Aluminium Wires
Unit System: Metric
ASTM B-230 TS 434 TS EN 60889
Related Standart
| Wire Diameter (mm) |
Diameter Tolerance | Cross Section (mm²) |
Rated Strenght (Mpa) |
Electrical D.C. Resistance (Ω / km) |
Unit Weight (kg / km) |
|---|---|---|---|---|---|
| 2,0 | ± 0,03 mm | 3,14 | 187 | 9,0 | 8,48 |
| 2,5 | ± 0,03 mm | 4,90 | 181 | 5,80 | 13,24 |
| 2,65 | ± 0,03 mm | 5,51 | 179 | 5,10 | 14,89 |
| 3,0 | ± 0,03 mm | 7,06 | 176 | 4,0 | 19,08 |
| 3,25 | ± % 1 | 8,29 | 173 | 3,40 | 22,40 |
| 3,5 | ± % 1 | 9,61 | 171 | 2,90 | 25,97 |
- Aluminium wires are manufactured from 1,35 – 3,50 mm in every diameter.
- Aluminium wire’s resistivity at 200C 0,028264 Ω mm²/m
- The density of aluminium wires is 2,703 g/cm³
- Conductivity 61.0 IACS Min.
